CONTEXT

Esix 1st year, final bonus project.

WHAT I DID

CAO / Electronics / MCU8bits programming / PCB making (self-taught)

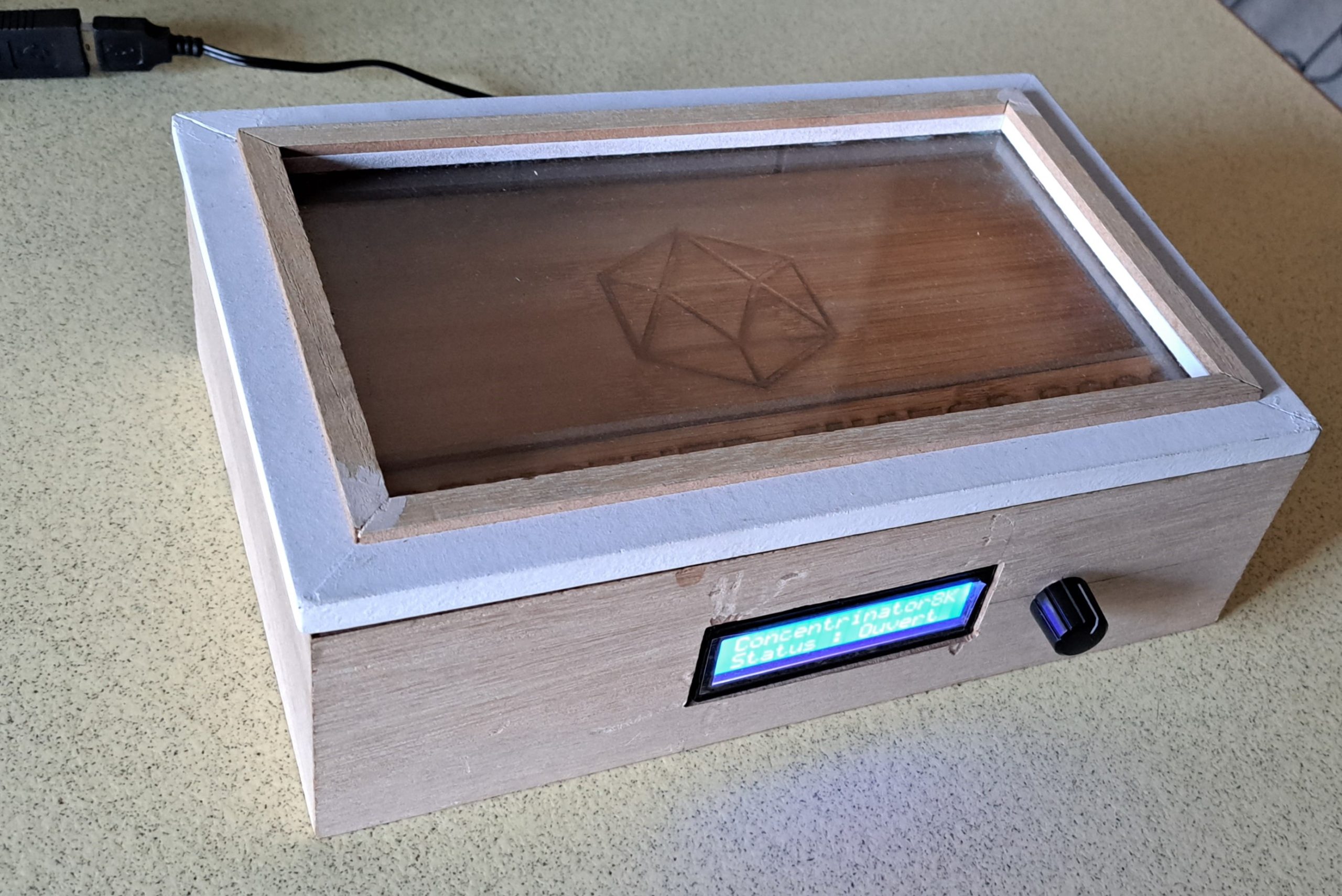

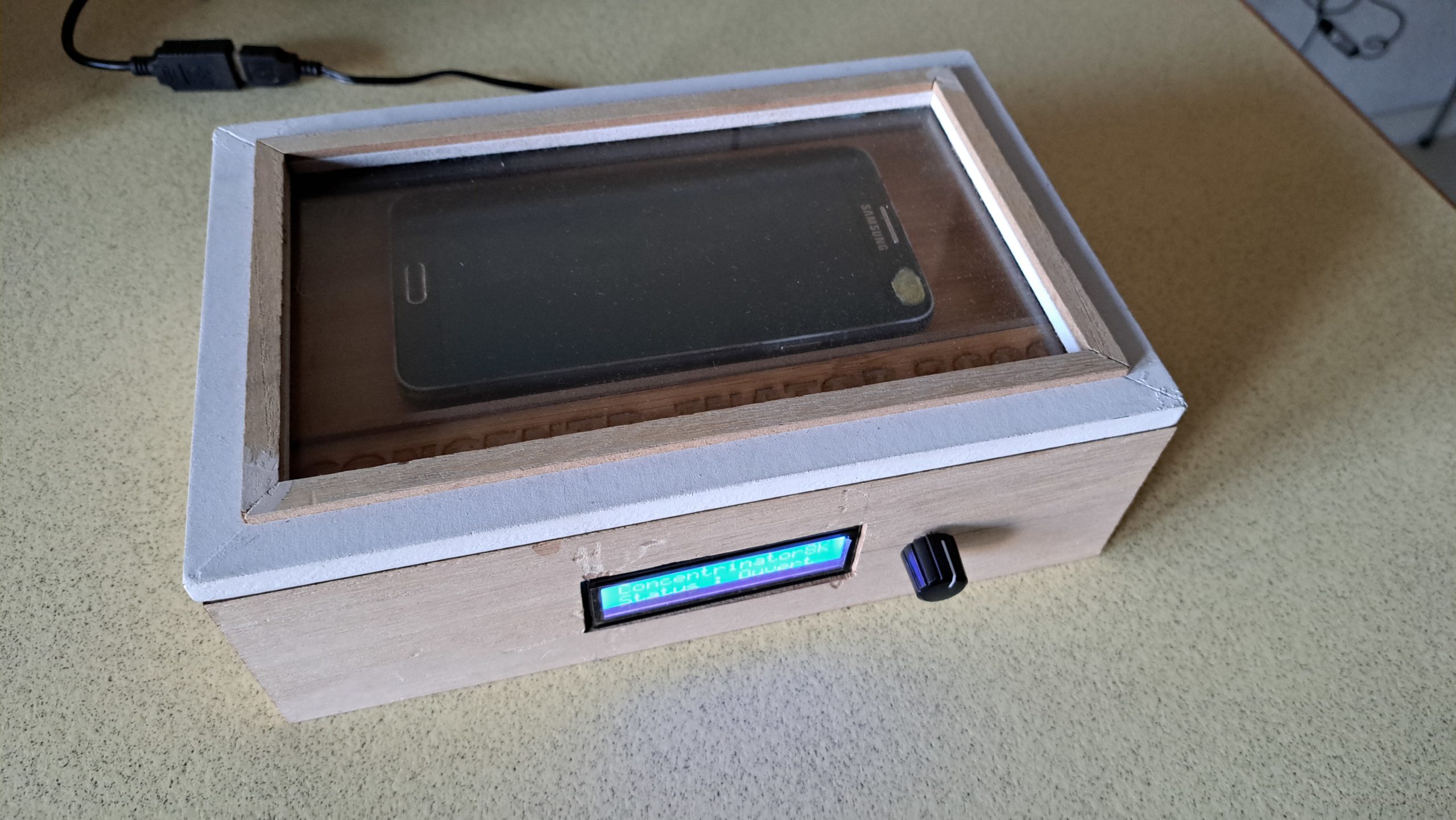

This boxitself is just a wooden Tea box I found for less than 4€ at Action (a dolars store), witch was modeled in Fusion360 to put several componant inside. I added some cover and separator that were laser cut from a 8mm Bambo cutting board.

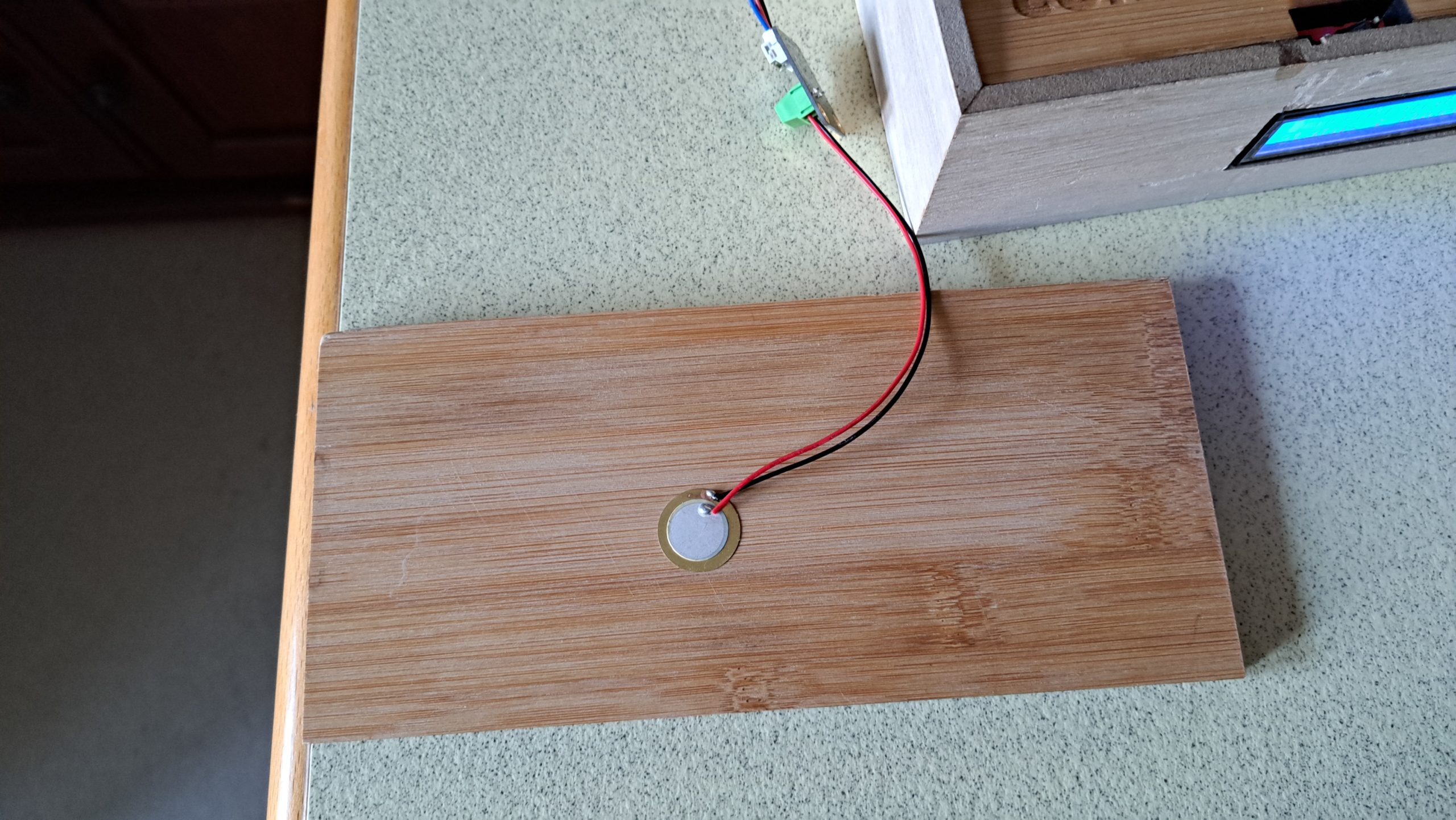

I add some usefull functionality like a QI charger and a piezo sensor to detect an incoming call (you wouldn’t want to miss a call from the company you applied to).

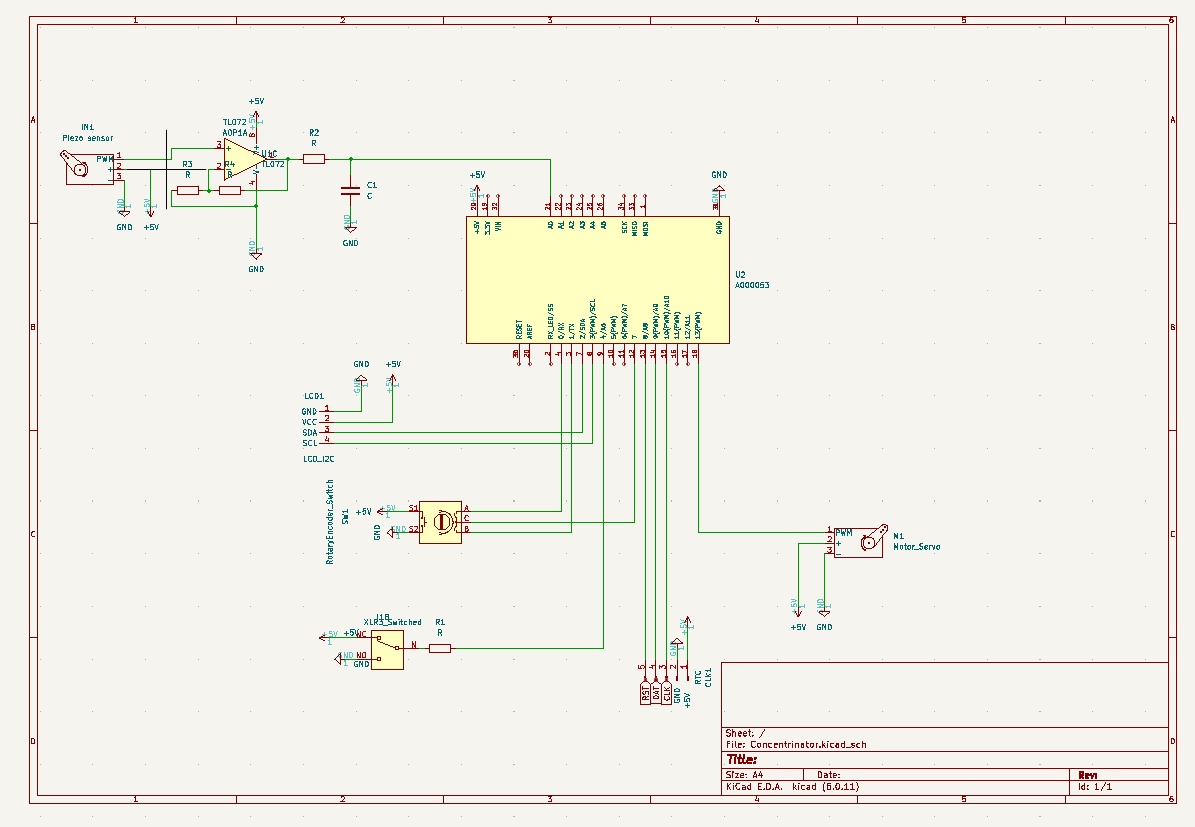

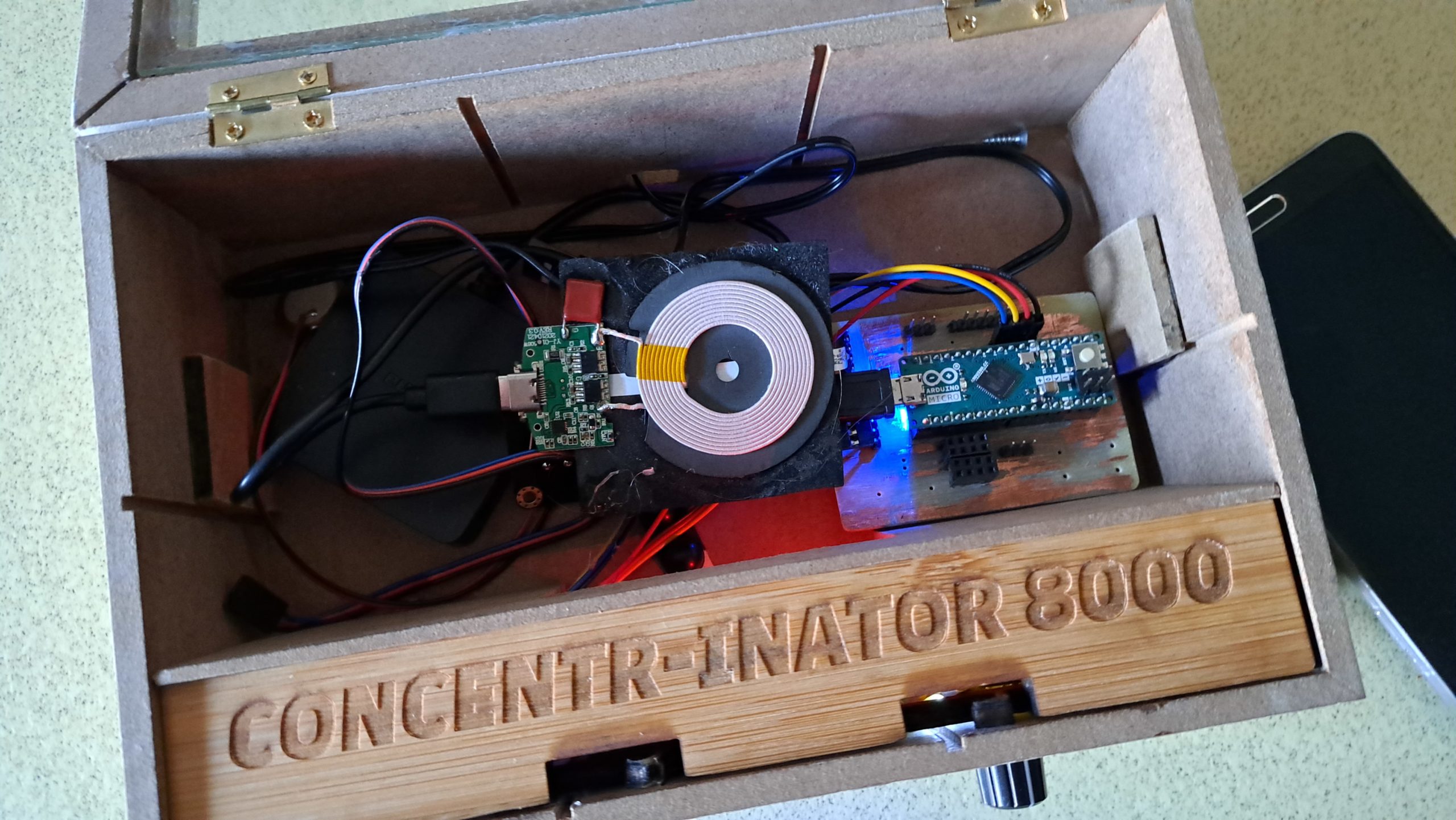

the system rely on an arduino micro (I also made one for the 8bits mcu 8051 efm8bb1 later) connected to a servo, an LCD display and a rotary encoder for UI.

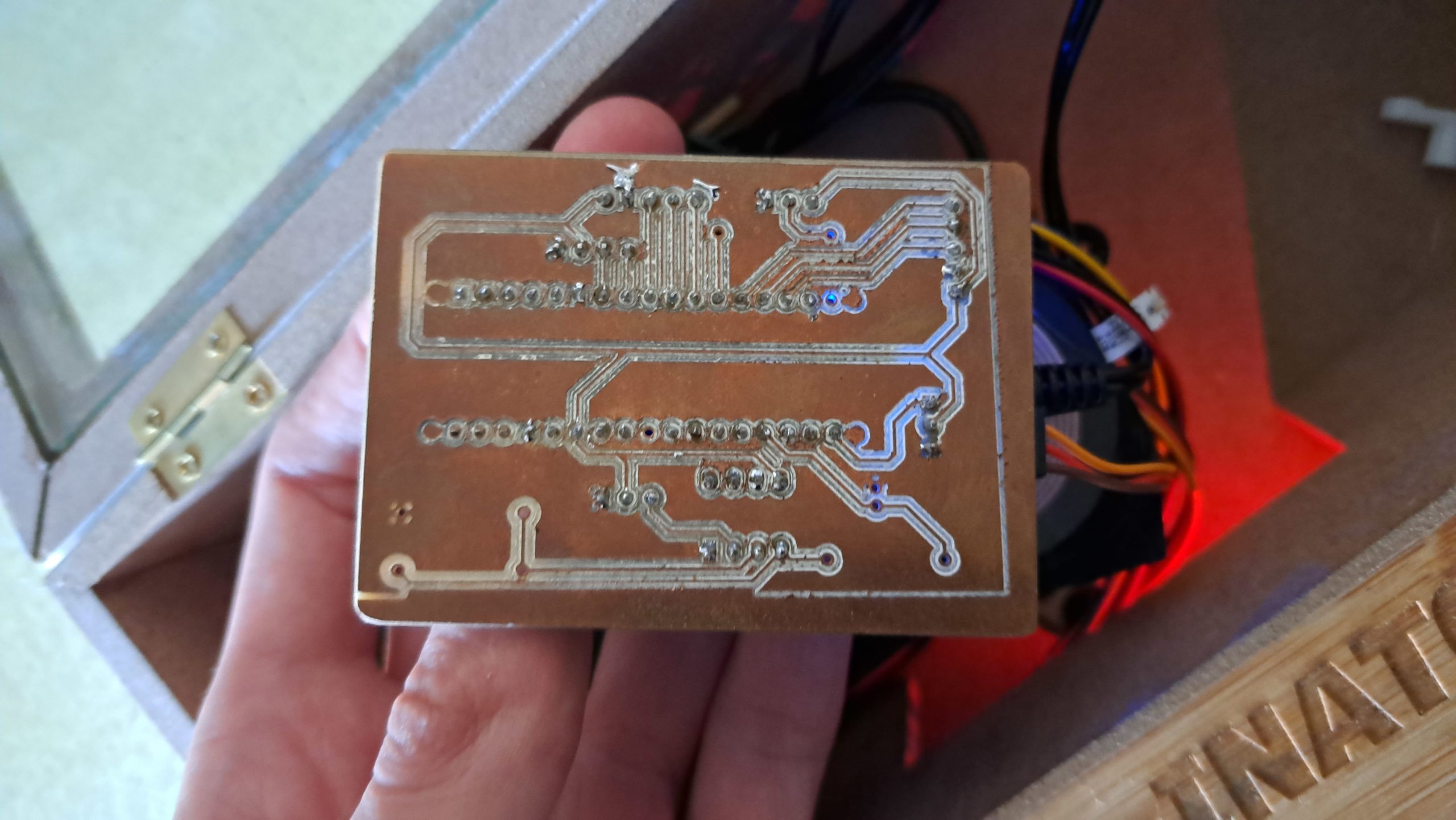

To make it organized, I design a PCB on KiCAD and use a CNC to engrave it. (I know it’s not very clean, but well, it’s my first one so I can only make better from now on)
